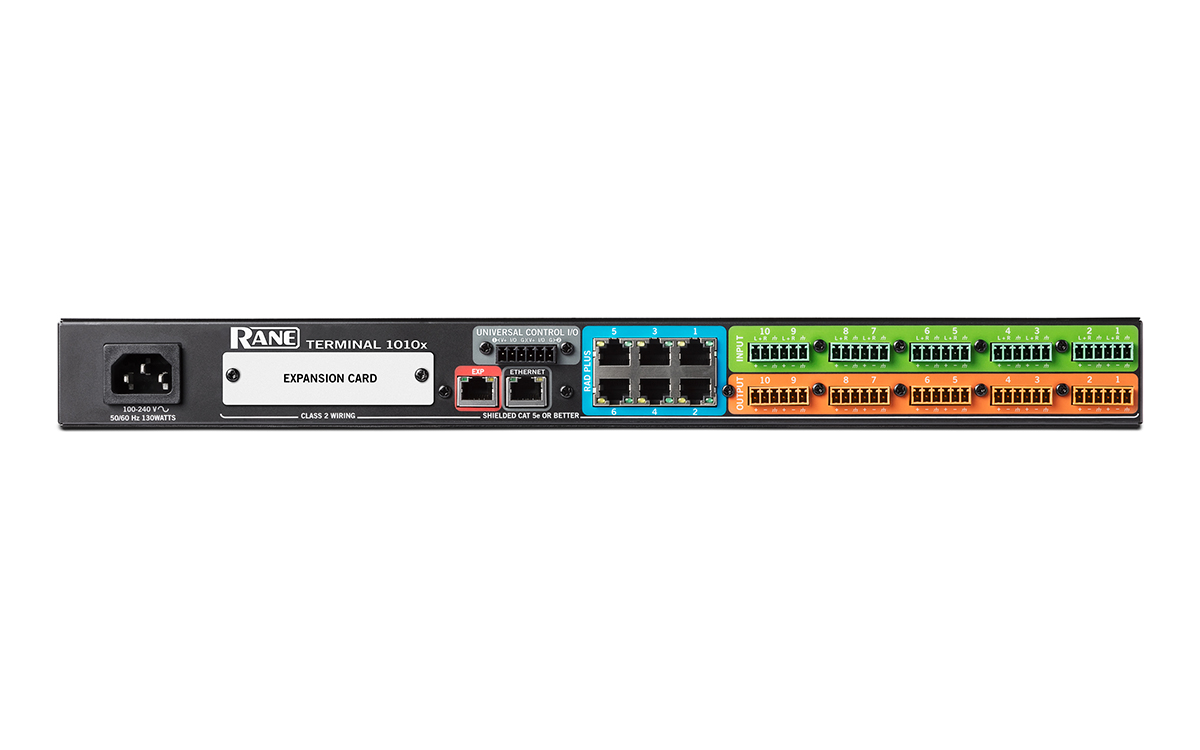

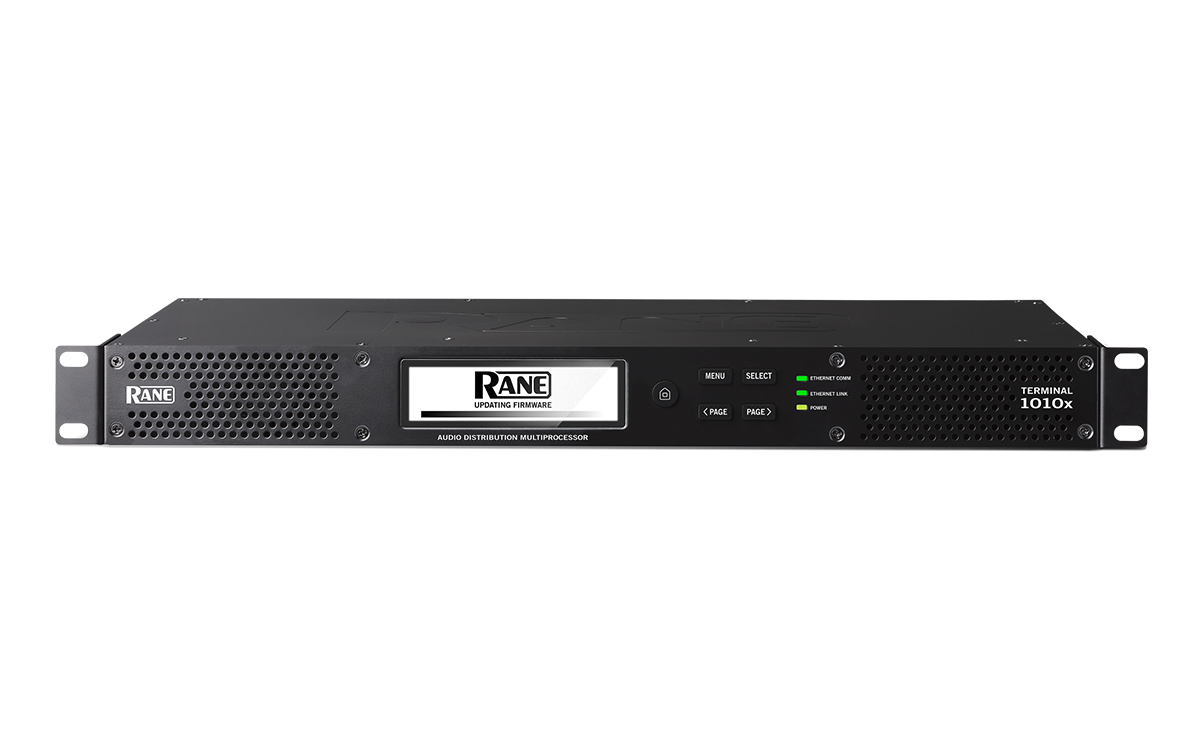

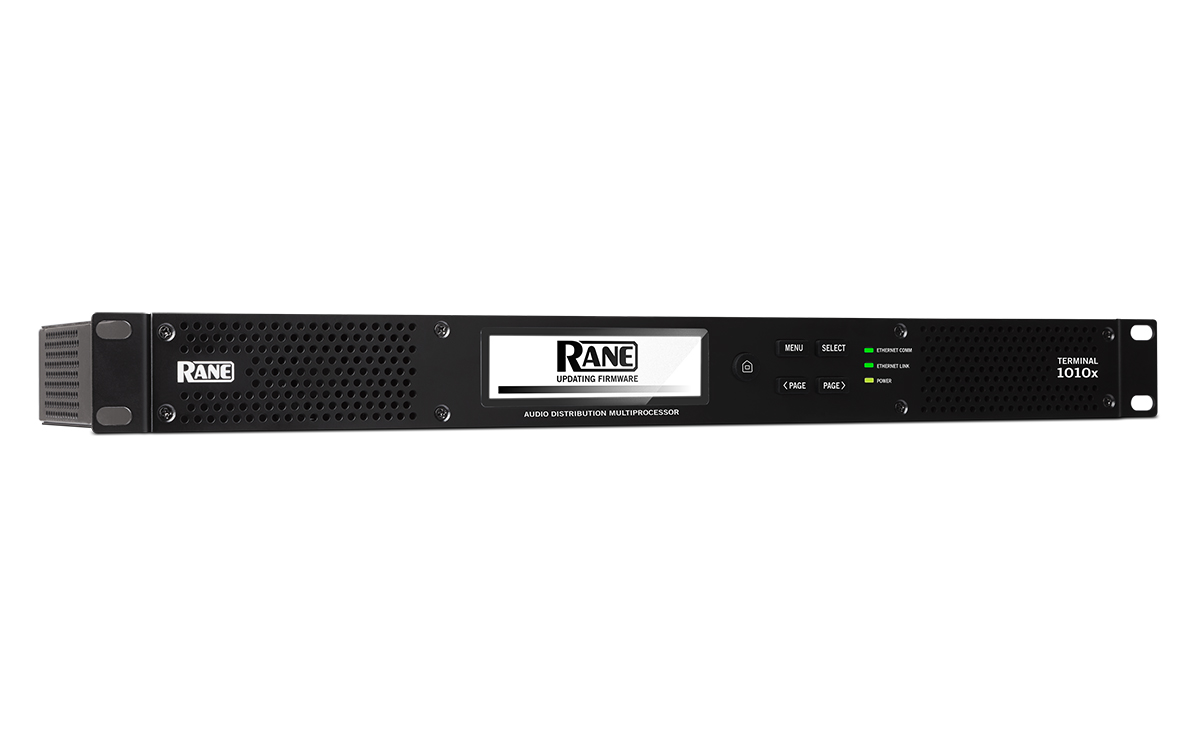

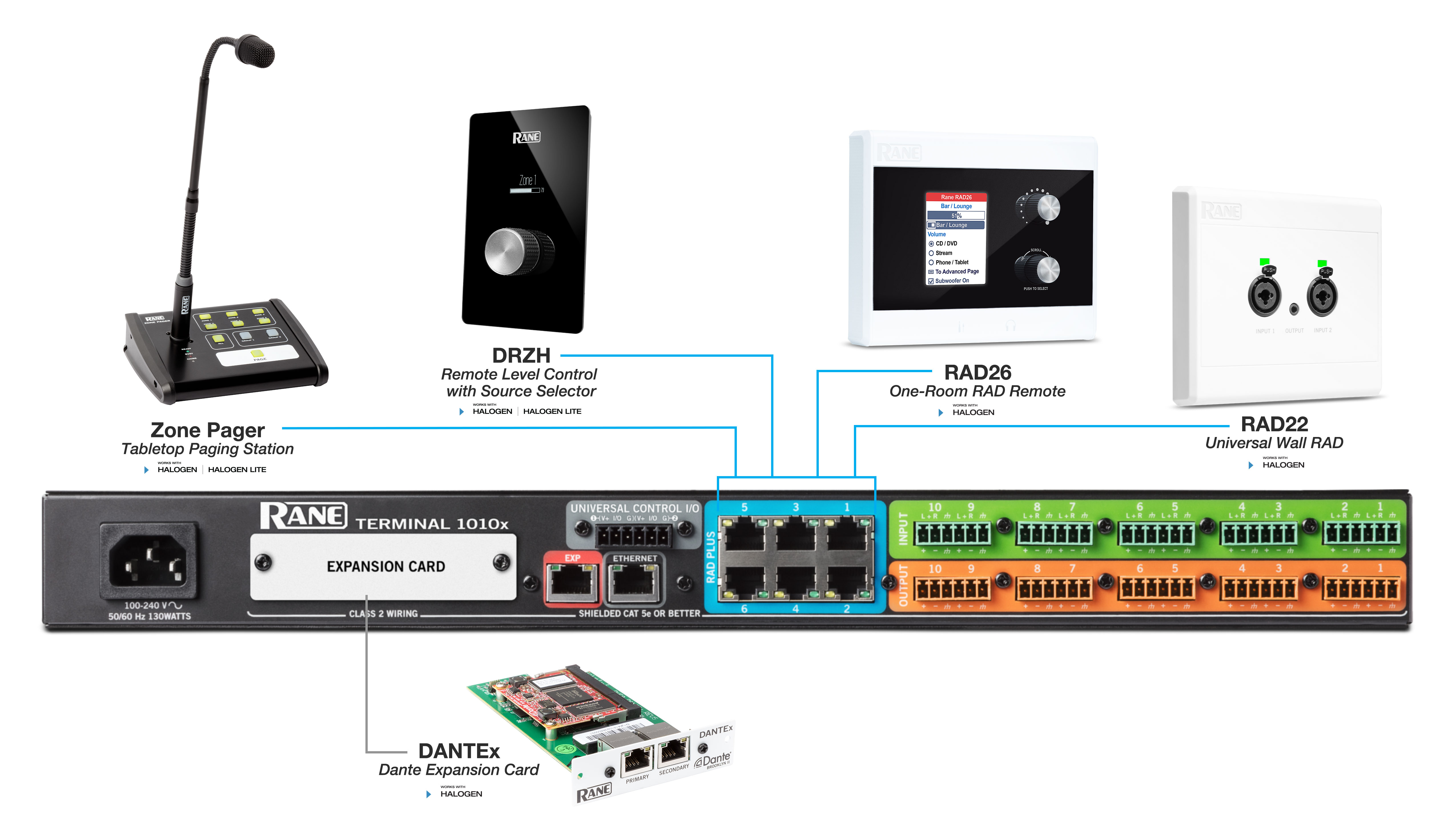

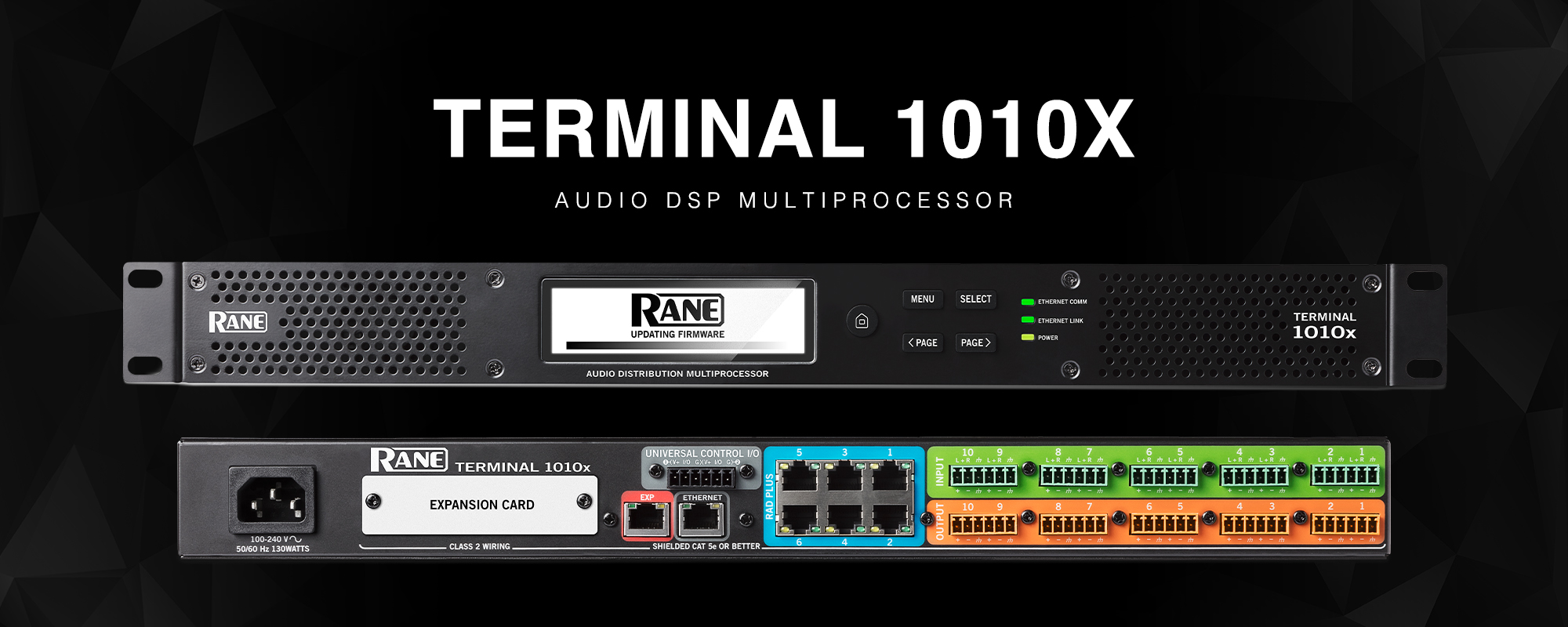

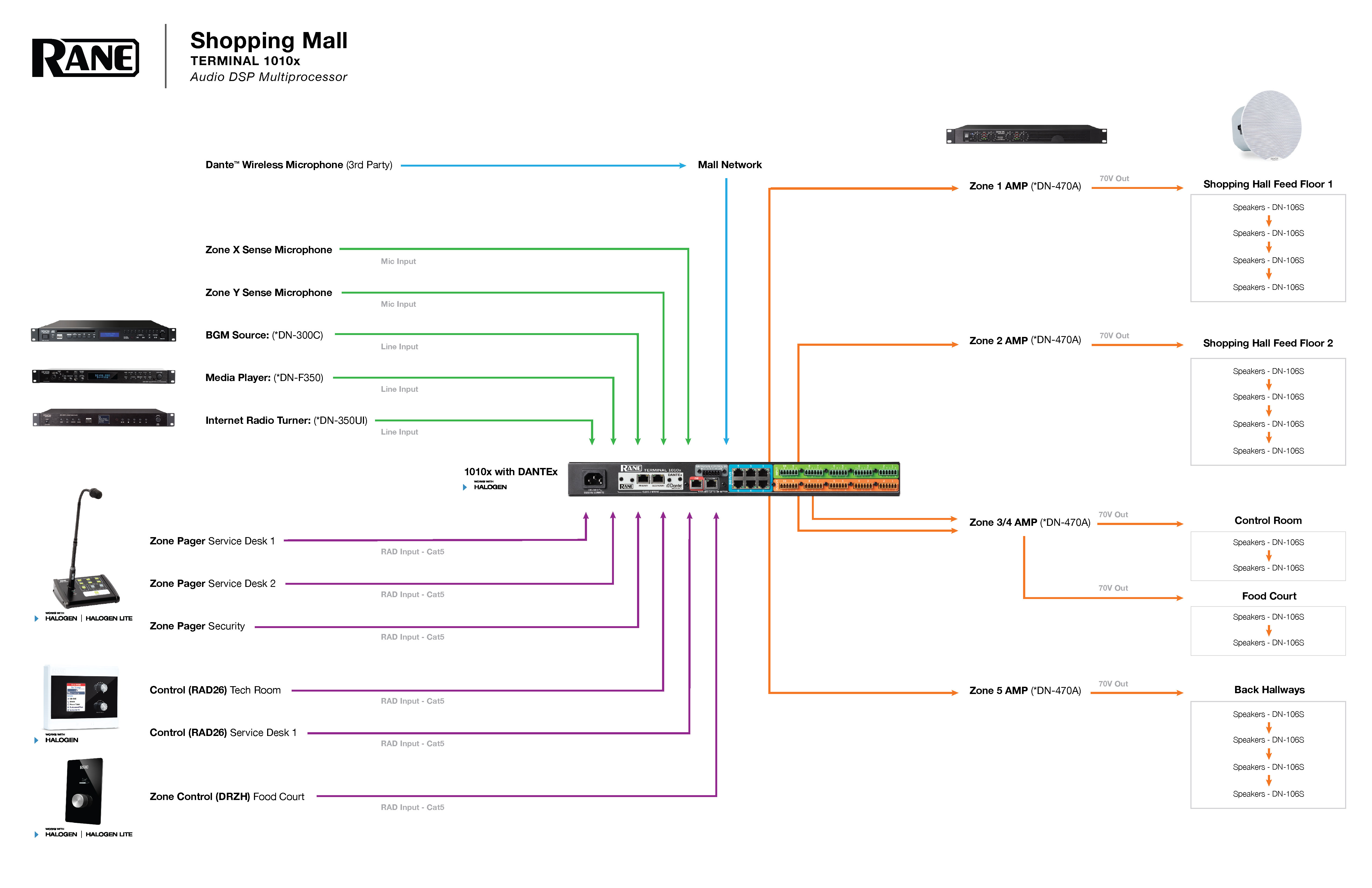

The Terminal 1010x takes the DSP Experience to the next level with an intuitive front-panel that enables users to control 10 analog balanced inputs for Mic/Line/+48V and 10 balanced outputs. There are also 6 flexible RAD Plus PoE ports to connect breakout boxes and wall plate remote controls and 4 Universal GPIO logic ports for external devices such as alarm systems, sensors, lights, projectors, etc. There is also a slot for an optional DANTE™ 32x32 card for network connectivity.

*Learn more at www.denonpro.com

Features
  • - Native Analog 10-in/10-out
  • - 6 RAD+ Ports support RADs and DRs - adds 12-in/12-out, for a total 22-in/22-out
  • - Optional DANTE™ card adds 32-in/32-out on the network
  • - Expansion Port for future hardware releases
  • - Online Wizard for quick-start using Halogen software
  • - Enhanced front panel control and monitoring
Package Contents
  • - Terminal 1010x
  • - (5) 6-pin 3.8 mm Euroblock input (green, for audio inputs)
  • - (5) 6-pin 3.8 mm Euroblock outputs (orange, for zone outputs)
  • - (1) 6-pin 3.8 mm Euroblock input (black, for logic input)
  • - IEC Power Cable
  • - Quickstart Guide
  • - Safety & Warranty Manual

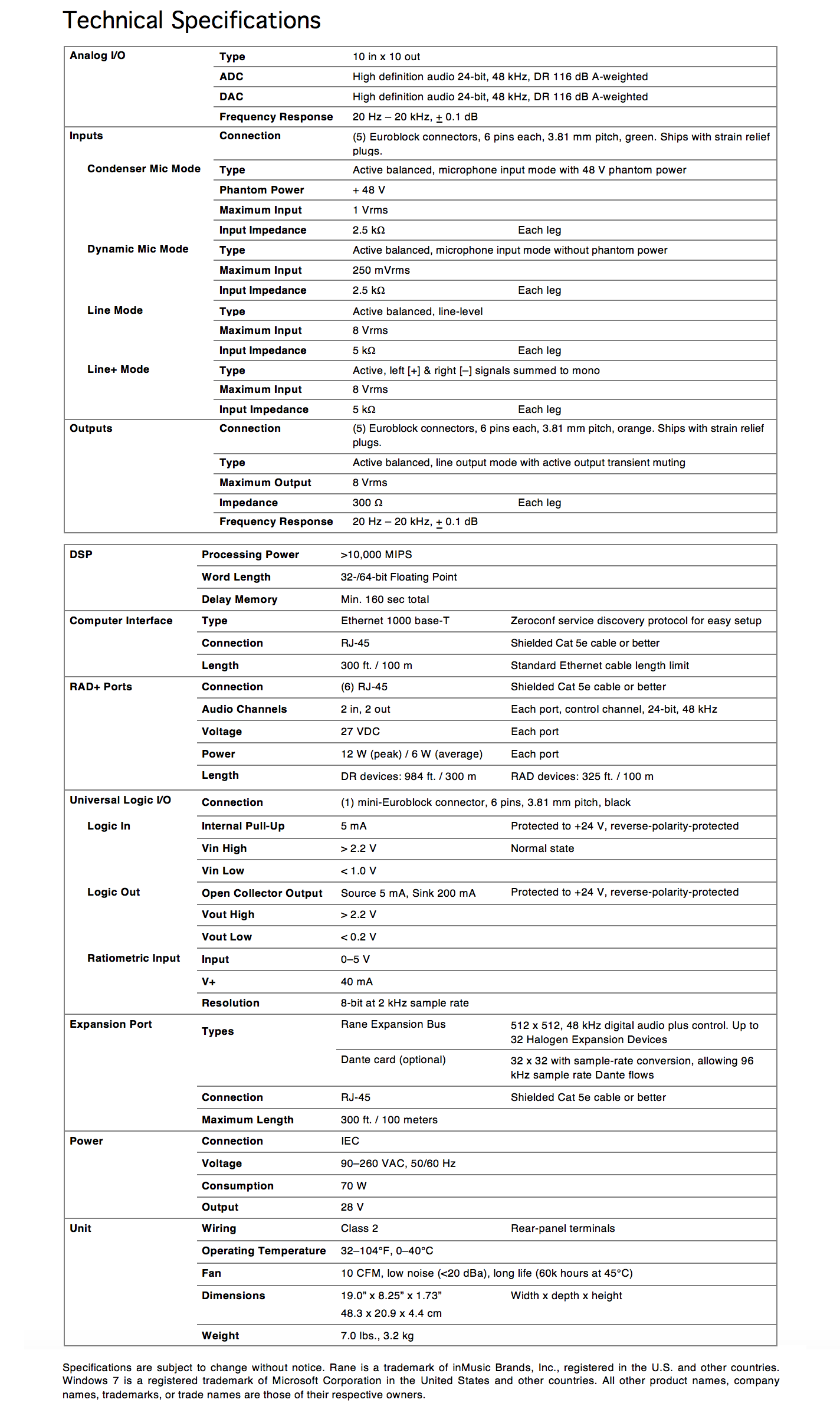

Technical Specifications
Analog I/O Type 10 in x 10 out
ADC High definition audio 24-bit, 48kHz, DR 116dB A-weighted
DAC High definition audio 24-bit, 48kHz, DR 116dB A-weighted
Frequency Response 20Hz–20kHz, ±0.1dB
Inputs Connection (5) Euroblock connectors, 6 pins each, 3.81mm pitch, green. Ships with strain relief plugs.
Condenser Mic Mode Type Active balanced, microphone input mode with 48V phantom power
Phantom Power +48V
Maximum Input 1Vrms
Input Impedance 2.5kΩ Each leg
Dynamic Mic Mode Type Active balanced, microphone input mode without phantom power
Maximum Input 250mVrms
Input Impedance 2.5kΩ Each leg
Line Mode Type Active balanced, line-level
Maximum Input 8Vrms
Input Impedance 5kΩ Each leg
Line+ Mode Type Active, left [+] & right [-] signals summed to mono
Maximum Input 8Vrms
Input Impedance 5kΩ Each leg
Outputs Connection (5) Euroblock connectors, 6 pins each, 3.81mm pitch, orange. Ships with strain relief plugs.
Type Active balanced, line output mode with active output transient muting
Maximum Output 8Vrms
Impedance 300Ω Each leg
Frequency Response 20Hz–20kHz, ±0.1dB
DSP Processing Power >10,000 MIPS
Word Length 32-/64-bit Floating Point
Delay Memory Min. 160sec total
Computer Interface Type Ethernet 1000 base-T Zeroconf service discovery protocol for easy setup
Connection RJ-45 Shielded Cat 5e cable or better
Length 300ft./100m Standard Ethernet cable length limit
RAD+ Ports Connection (6) RJ-45 Shielded Cat 5e cable or better
Audio Channels 2 in, 2 out Each port, control channel 24-bit, 48kHz
Voltage 27 VDC Each port
Power 12W (peak)/6W (average) Each port
Length DR devices: 984ft./300m RAD devices: 325ft./100m
Universal Logic I/O Connection (1) mini-Euroblock connector, 6 pins, 3.81mm pitch, black
Logic In Internal Pull-Up 5mA Protected to +24V, reverse-polarity-protected
Vin High > 2.2V Normal state
Vin Low < 1.0V
Logic Out Open Collector Output Source 5mA, Sink 200mA Protected to +24V, reverse-polarity-protected
Vout High > 2.2V
Vout Low < 0.2V
Ratiometric Input Input 0–5V
V+ 40mA
Resolution 8-bit at 2kHz sample rate
Expansion Port Types Rane Expansion Bus 512 x 512, 48kHz digital audio plus control. Up to 32 Halogen Expansion Devices
Dante card (optional) 32 x 32 with sample-rate conversion, allowing 96kHz sample rate Dante flows
Connection RJ-45 Shielded Cat 5e cable or better
Maximum Length 300ft./100m
Power Connection IEC
Voltage 90–260VAC, 50/60Hz
Consumption 70W
Output 28V
Unit Wiring Class 2 Rear-panel terminals
Operating Temperature 32–104°F, 0–40°C
Fan 10CFM, low noise (<20dBa), long life (60k hours at 45°C)
Dimensions 19.0" x 8.25" x 1.73"
48.3cm x 20.9cm x 4.4cm		 Width x depth x height
Weight 7.0 lbs., 3.2 kg

Specifications are subject to change without notice. Rane is a trademark of inMusic Brands, Inc., registered in the U.S. and other countries. Windows 7 is a registered trademark of Microsoft Corporation in the United States and other countries. All other product names, company names, trademarks, or trade names are those of their respective owners.

*Learn more at www.denonpro.com

  • Terminal 1010x
  • (5) 6-pin 3.8 mm Euroblock input (green, for audio inputs)
  • (5) 6-pin 3.8 mm Euroblock outputs (orange, for zone outputs)
  • (1) 6-pin 3.8 mm Euroblock input (black, for logic input)
  • IEC Power Cable
  • Quickstart Guide
  • Safety & Warranty Manual

Compatible Products

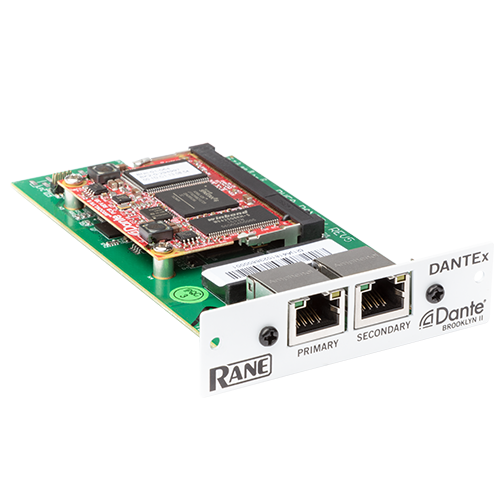

DANTEx Dante Expansion Card

The DANTEx is an optional plug-in card for the Rane Terminal 1010x that allows system designers to integrate a Terminal 1010x processor with Dante-equipped microphones, amplifiers, breakout boxes, mixing consoles and other supported devices. It provides 32 inputs and 32 outputs of Dante digital audio with supported samples rates of 44.1kHz, 48kHz, 88.2kHz and 96kHz. Built-in sample rate conversion (SRC) converts the Dante sample rate to the fixed 48kHz sample rate required by the Terminal 1010x.

The Dante interface is managed using Audinate’s Dante Controller software. Dante controller is a free software application that enables the user to route and configure devices on a Dante network.

<<LEARN MORE>>

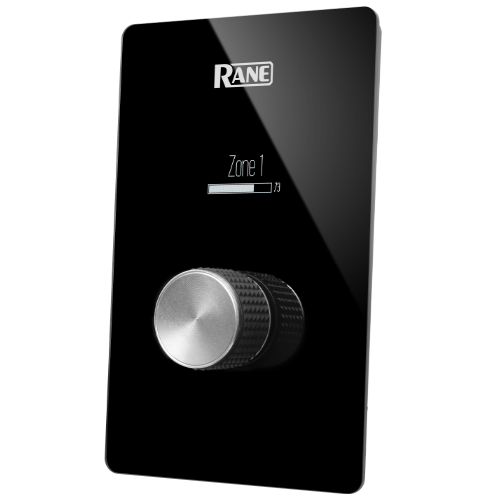

DRZH Remote Level Control with Source Selector

The DRZH is a wall-mounted digital remote (DR) for use with all Rane multiprocessors, including the new Zonetech audio processor. The DRZH features source selection and level control through the use of a single knob. It has a sleek black glass design, and the OLED display is easy to read in any environment. Connect the DRZH to RANE DSP with a Cat5e (or better) cable for a local run up to 1000 ft (300m) away from the equipment rack.

Each DRZH may be installed onto a standard U.S. 1-gang electrical box.

<<LEARN MORE>>


Zone Pager Tabletop Paging Station

The RANE Zone Pager is a paging station that allows users to page up to (6) zones separately, to (2) groups of zones, and to all zones at the same time. Lights will indicate if the zone is READY or BUSY (already being paged by a higher-priority paging station) and when the chime has completed (if enabled).

Zone Pager is perfect for use in bar/lounge restaurants, meeting rooms, schools, house of worship, and smaller venues where multiple paging zones are needed.

<<LEARN MORE>>

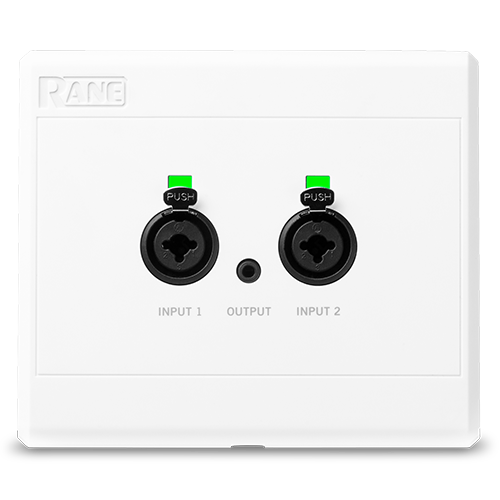

RAD22 Universal Wall RAD

The RAD22 adds flexible I/O capability to RANE DSP systems. It provides two mic and two line inputs via XLR/TRS combination jacks and an 1/8” (3.5mm) stereo line output for monitoring, recording or amplification. Smart muting allows for the disconnecting of XLR and 1/4” cables to prevent disruption to sound systems for hot-swapping of microphones - even with 24V phantom power applied. Connect the RAD22 to RANE DSP with a Cat5e (or better) cable for a local run up to 500 feet (150m) away from the equipment rack.

Each RAD22 may be installed onto a standard U.S. two-gang electrical box, or flush-mounted to a wall surface.

<<LEARN MORE>>

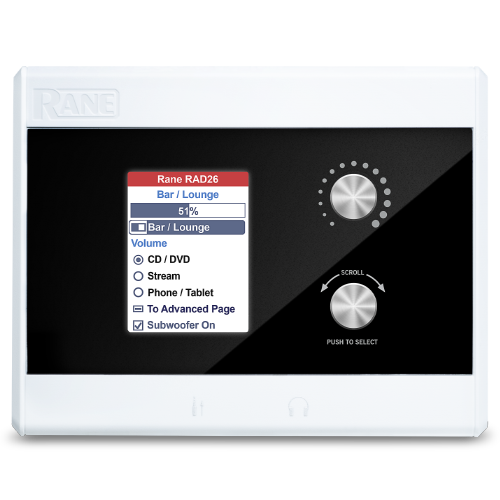

RAD26 One-Room RAD Remote

The RAD26 provides any room with end user control via the color LCD display and rotary encoders. It also features a dual universal audio I/O interface, line-level input jacks for local needs, a headphone output, and a dual 4-watt amp all using using one shielded cat5e (or better) cable drop. Three logic closure inputs and three active-low outputs add to the control capabilities. The built-in amplifier powers a small stereo pair of room speakers, or it can be switched in software to power a single 8-watt speaker. The RAD26 provides enough I/O and control to support one room in a HAL audio system which may require…

<<LEARN MORE>>

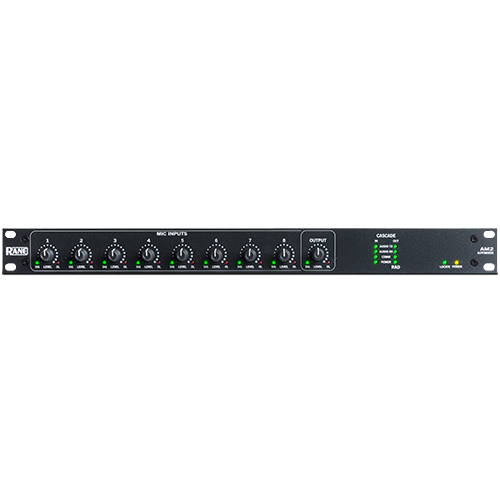

AM2 Automixer

The Rane AM2 is both an 8 channel, gain-sharing automatic mic mixer and simultaneously a Rane RAD. Use it as a standalone mic-only mixer, add more gain-shared mics using up to seven additional AM2 Automixers, and/or use the RAD Port to transport the mic mix to Rane's HAL system.

Each of the eight XLR Mic Inputs offers front panel input Level controls feeding a gain-sharing automatic mixer. Rear panel, 3-position selectors support dynamic mics (no phantom power), condenser mics (48 V), or line input optimized for wireless receiver outputs (+10 dBu max). All Level controls come with front panel signal and overload indicators.

<<LEARN MORE>>

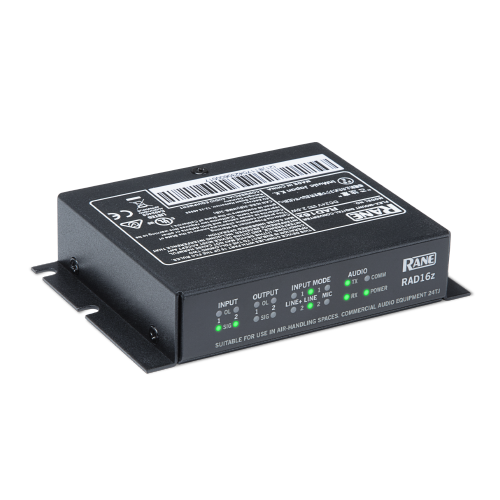

RAD16z Halogen Interface with Dual Inputs / Dual Outputs / Dual Logic I/O
