DRZH

Remote Level Control with Source Selector

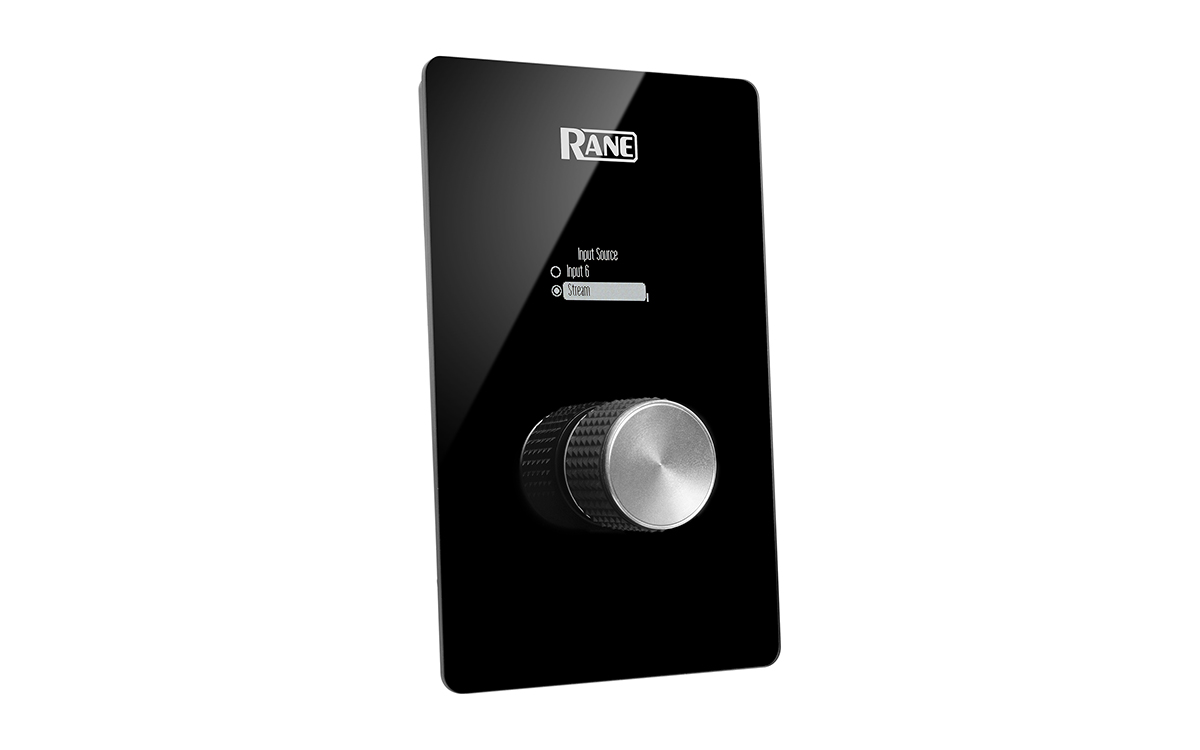

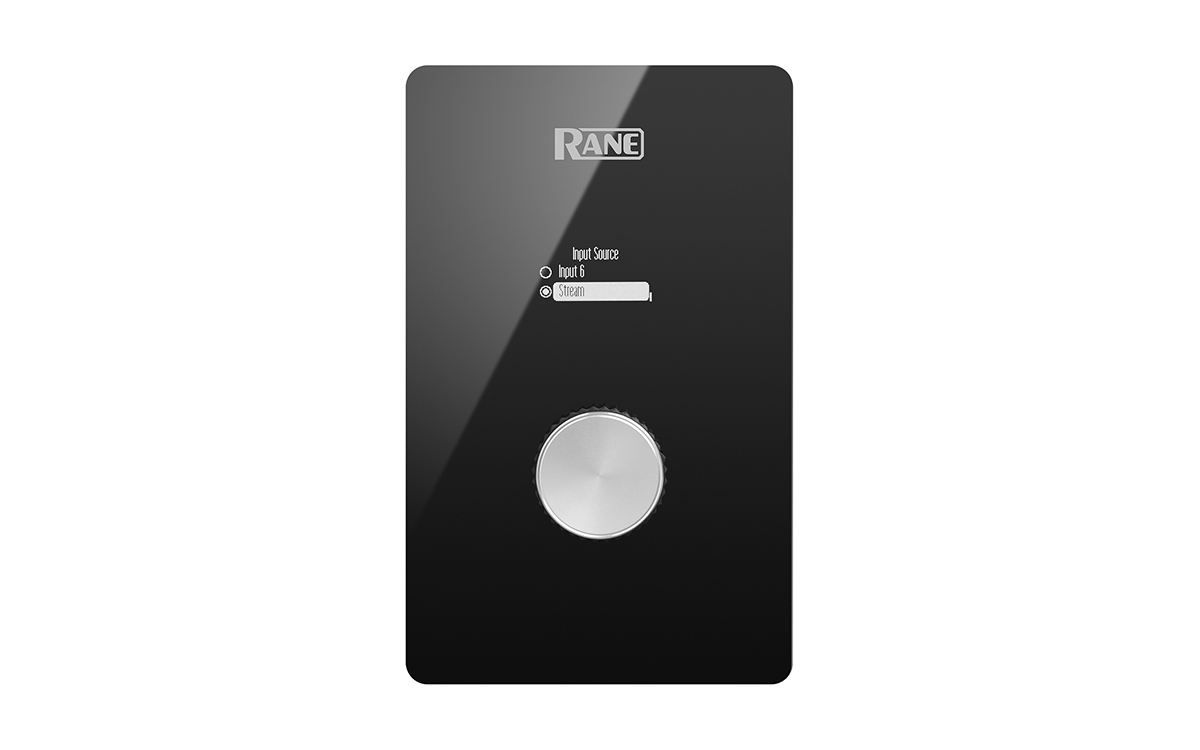

The DRZH is a wall-mounted digital remote (DR) for use with all Rane multiprocessors, including the new Zonetech audio processor. The DRZH features source selection and level control through the use of a single knob. It has a sleek black glass design, and the OLED display is easy to read in any environment. Connect the DRZH to RANE DSP with a Cat5e (or better) cable for a local run up to 1000 ft (300m) away from the equipment rack.

Each DRZH may be installed onto a standard U.S. 1-gang electrical box.

  • Zonetech – Halogen Remote Audio Device
  • Level control
  • Source selection
Technical Specifications
Display 1.1” x 0.6” / 26.7 x 15.5mm (width x height)
1.2” / 30.9mm (diagonal)
128 x 64 pixel resolution
Monochrome, white on black

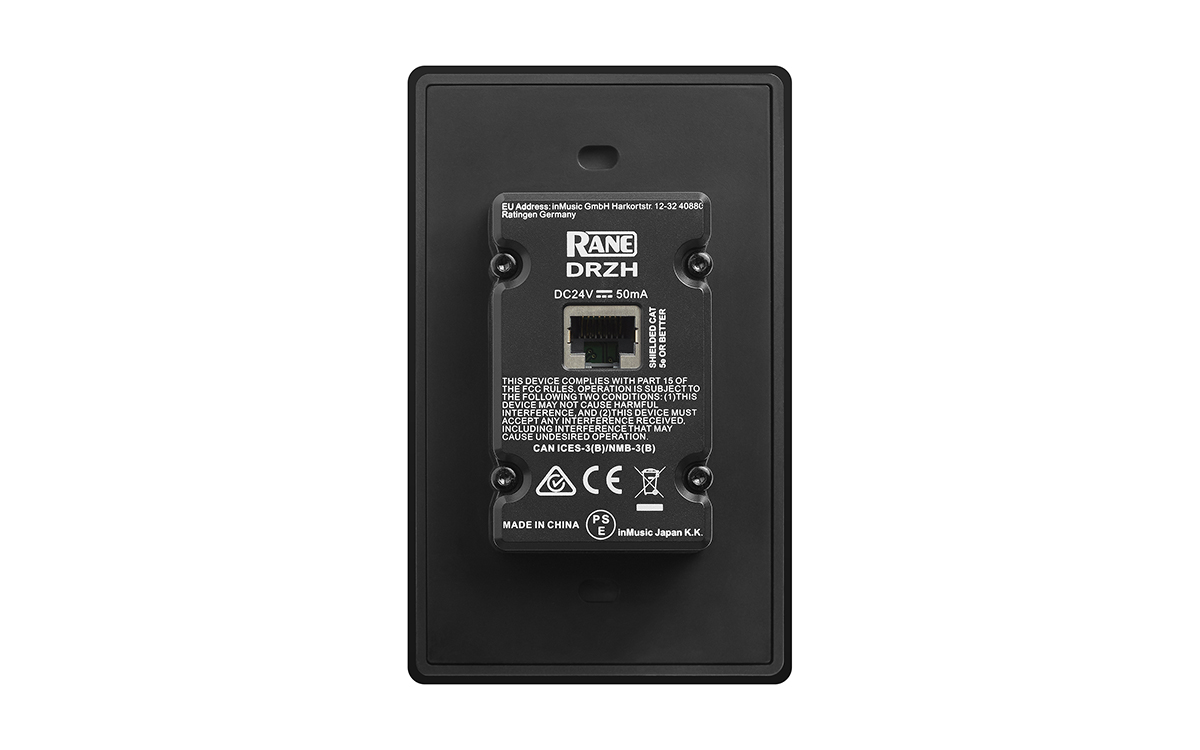

Connectors (1) Ethernet/RJ45 port
Power Connection Ethernet/RJ45 port
Voltage 24V
Consumption 1.2W
Dimensions
(width x depth x height)
3.0” x 2.0” x 4.7”
75 x 50 x 120mm
Weight 0.3 lb.
150g
  • DRZH
  • Mounting Screws
  • Safety & Warranty Manual
  • User Guide
