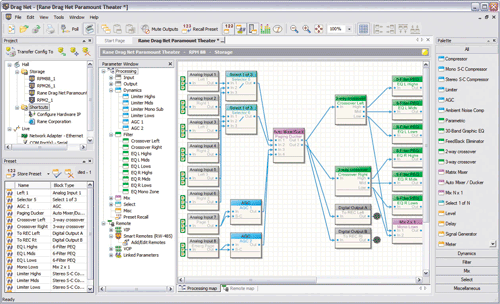

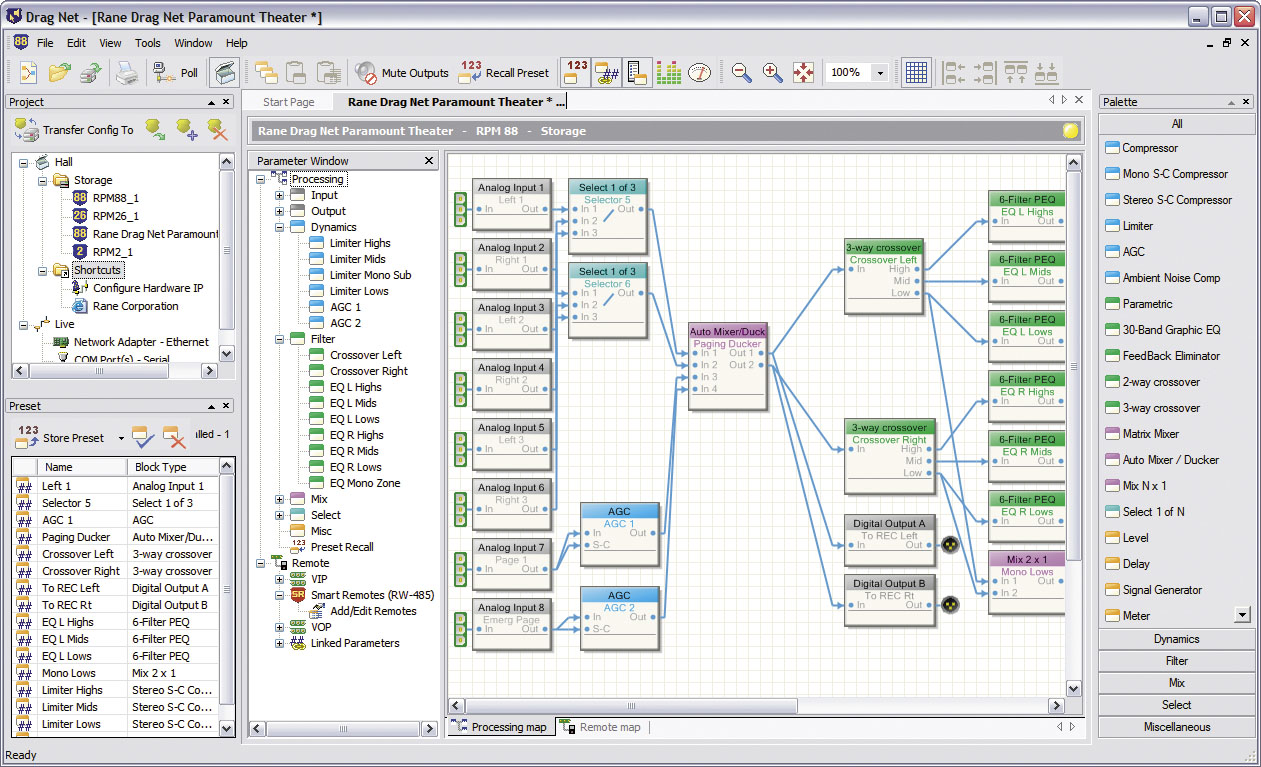

Drag Net is a Windows-based software application used to configure, control and monitor the RPM Series Programmable Multiprocessors and their remote controls. Drag Net features an intuitive drag-and-drop style user interface, with standard 10Base-T Ethernet connectivity for PC to RPM communication.
Drag Net Troubleshooting Chart Page Drag Net / RPM FAQ Page
RaneNote: "Wireless Control of RPM Drag Net Multiprocessors" RaneNote: "Interfacing AES3 and S/PDIF" RaneNote: "Sound System Interconnection"
Drag Net Quick Start Guide (ships with every RPM model). "Considerations in Grounding & Shielding Computer-Controlled Audio Devices"If the above options don't answer your question, or it's urgent...
Phone 425-355-6000, 8:30 AM to 5 PM PST, Monday through Friday.
If it's less urgent, you can email dragnet@rane.com
Our fax is 425-347-7757.
If you'd prefer a lovely handwritten response on fancy company letterhead, mail us:
10802 47th Ave West, Mukilteo, WA, USA 98275-5098
Model |
Analog Inputs |
Analog Outputs |
AES3 Input |
AES3 Output |
Total Inputs |
Total Outputs |
2 line |
2 |
no |
no |
2 |
2 |
|
2 |
2 |
no |
yes |
2 |
4 |
|
2 line |
6 |
yes |
no |
4 |
6 |
|
2 |
2 |
yes |
yes |
4 |
4 |
|
4 |
4 |
yes |
yes |
6 |
6 |
|
8 |
8 |
yes |
yes |
10 |
10 |

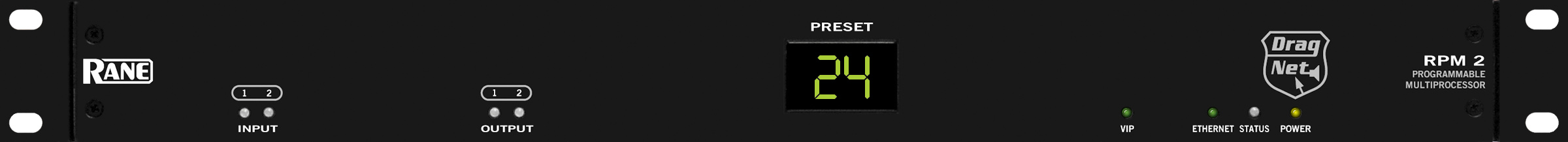

Note: The RPM units have been discontinued and only on this chart for comparison.
All RPM models have Ethernet 10Base-T, 8 logic inputs, balanced Euroblock connectors.
RPM 2 and 26z are line in only. Other units are mic / line switchable in Drag Net.
From the Versatile Input Port, control almost any parameter from pot-on-a-wall, contact closures, or pre-made Remotes.
For even more inputs and outputs, see the HAL System. 22 RAD models include a Paging Station and Ambient Noise Microphone. A Room Combine Processor and easy linking to Digital Remote controls are parts of a comprehensive supply of additional processing.
Model |
Analog Inputs |
Analog Outputs |
RAD inputs |
RAD outputs |
Total Inputs |
Total Outputs |
8 |
8 |
8 |
8 |
16* |
16* |
|
|
*Up to 512 inputs and 512 outputs can be added with Expanders.
|
|||||
8 |
8 |
8+2 |
8+2 |
18 |
18 |
|
2 |
6 |
4 |
4 |
6 |
10 |
|
2 |
2 |
0 |
0 |
2 |
2 |
|
