The LT 22 is a line-level two channel isolation box. Each channel contains a low distortion, high output, wide bandwidth, nickel-core output transformer.
The LT 22 is an easy and convenient way to add output transformers to any line-level equipment. The Inputs and Outputs may be configured as balanced or unbalanced as required.
The LT 22 is the quick and affordable answer to all jobs requiring output balancing or isolation transformers. The Euroblock connections provide maximum installation flexibility and cost savings.
The BB 22’s isolation transformers provide a quick and affordable answer to most jobs requiring signal level conversion and output balancing.
The LT 22 fills the need of adding output isolation balancing transformers to any line-level equipment. It is a convenient alternative to the expense and clutter of adding loose or in-line transformers. The steel enclosure with mounting flanges provide an easy installation anywhere.
Wiring
No special instructions are necessary when wiring the LT 22. Use high-quality wire and choose the grounding method appropriate for the application. Inputs or outputs may be balanced or unbalanced in any combination. Connect unbalanced signal to the (+) terminal and shields to the (–) terminal.
Signal Direction
This is a 1:1 isolation transformer with no level changes. Signal can be isolated either direction through this unit.
Chassis Grounding
#6-32 screw terminals are provided for chassis grounding purposes. Good practice dictates earth-grounding the LT 22. If grounding integrity is in doubt, run a wire from one of these screws to a known earth ground.

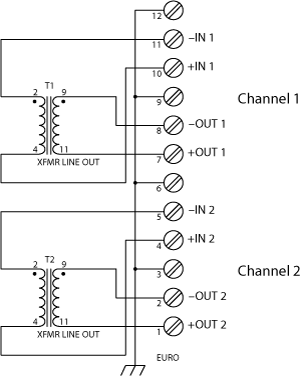

Schematic
Each unit is shipped with the LT22 Manual containing Safety and Compliance information, Schematic, the RaneNote "Sound System Interconnection," Declaration of Conformity, and Rane's 2+ Year Warranty information.
RaneNote: "Sound System Interconnection" RaneNote: "Grounding and Shieling Audio Devices" RaneNote: "Setting Sound System Level Controls"If the above doesn't answer your question, or it's urgent...
Phone 425-355-6000, 8:30 AM to 5 PM PST, Monday through Friday.
If it's less urgent, you can email the factory.
LT 22 Line Transformer Data Sheet / Manual

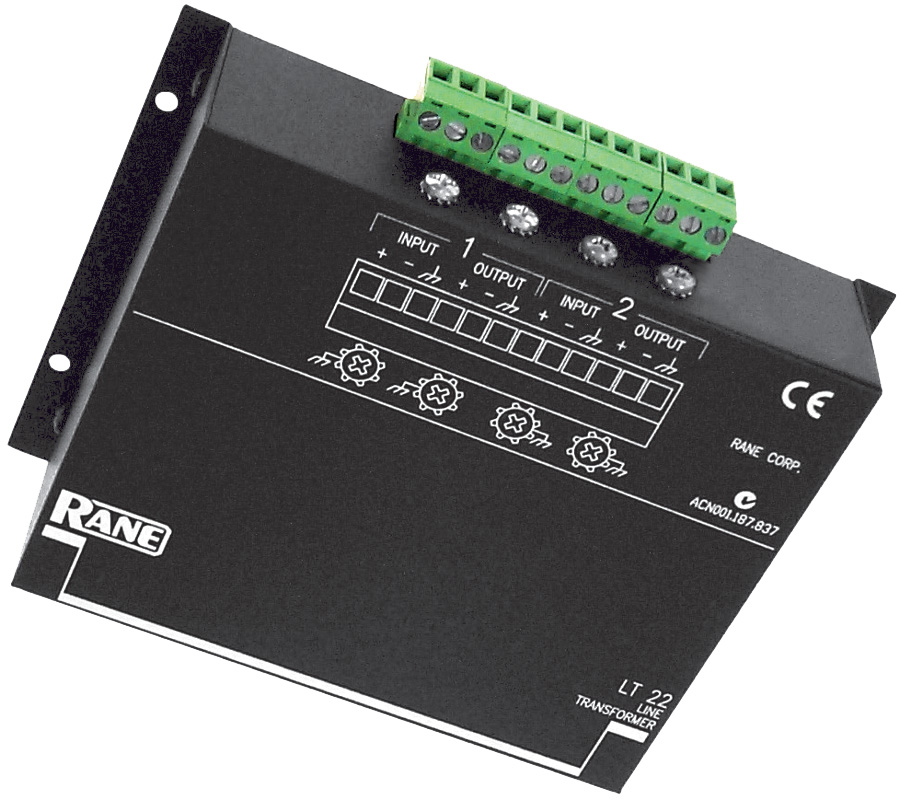

LT 22 Line Transformer photo

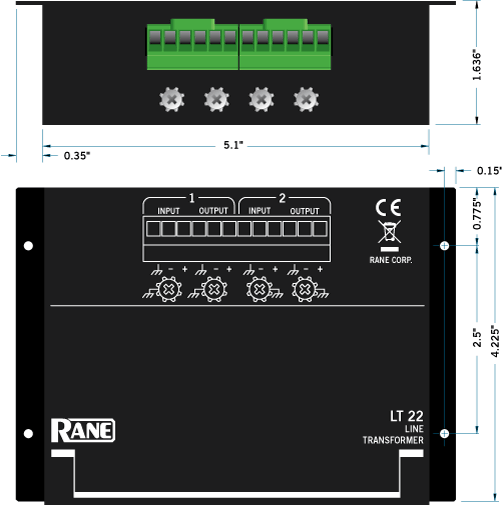

LT 22 Line Transformer graphic top & rear

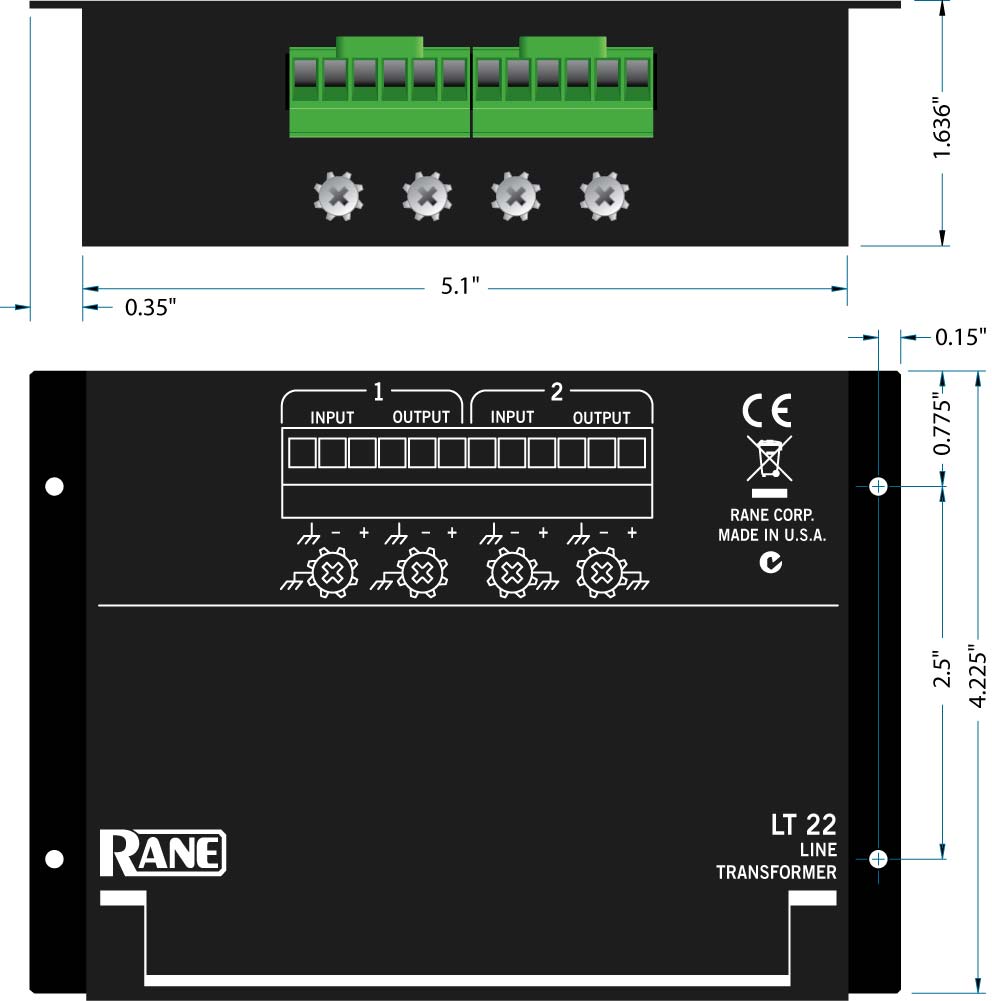

LT 22 Line Transformer front DWG
