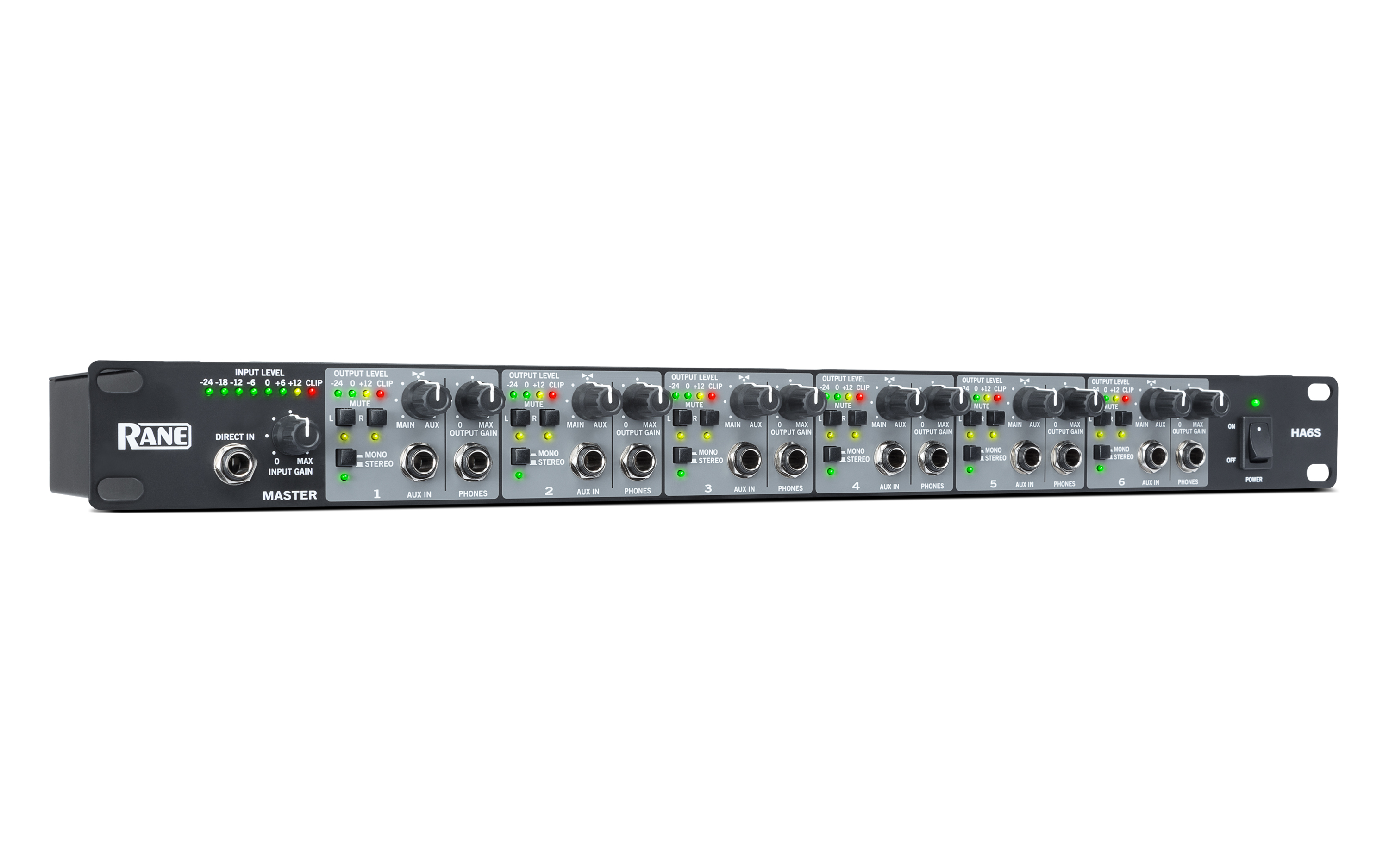

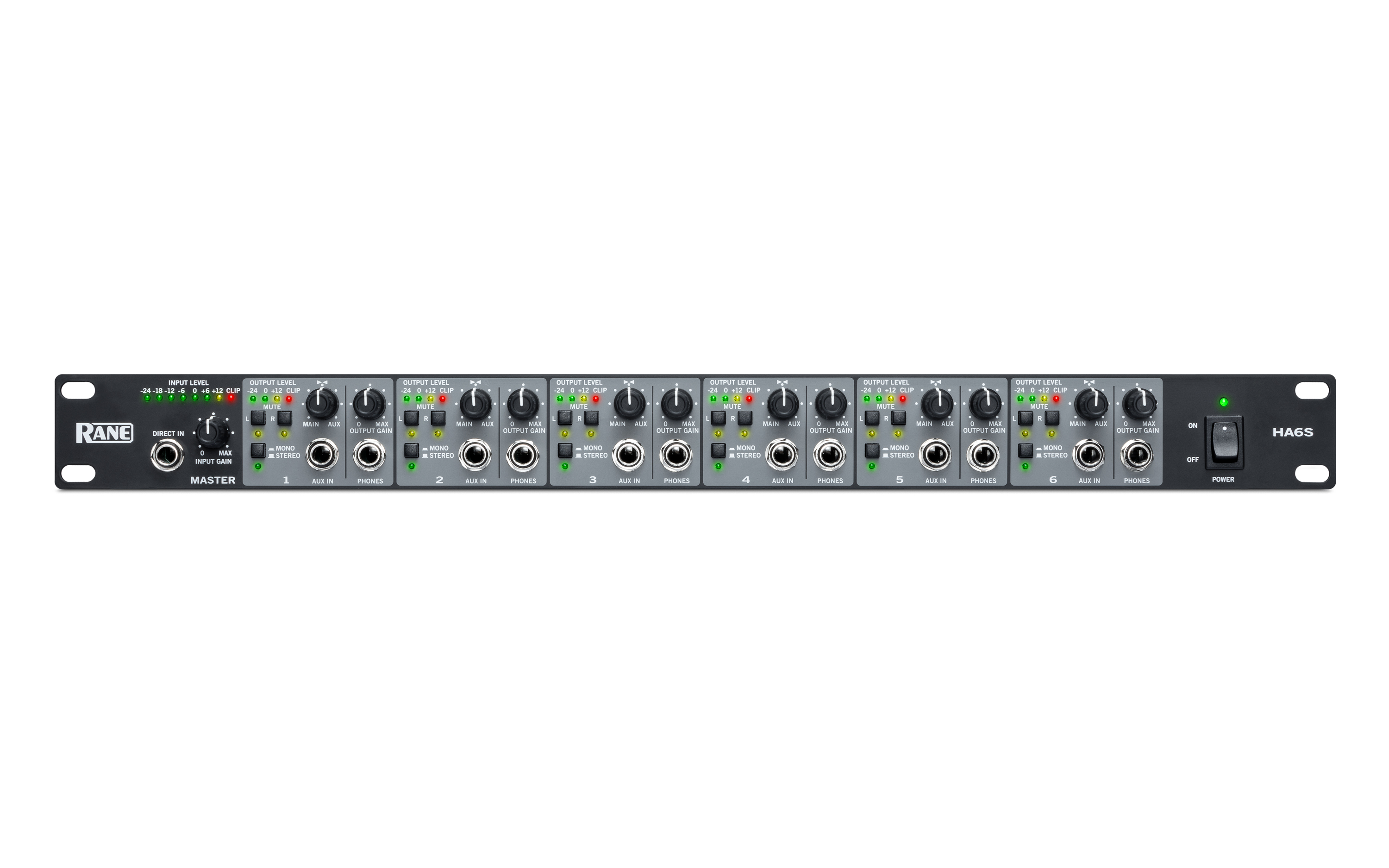

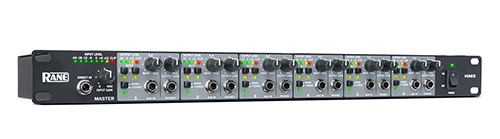

HA6S 6-Channel Headphone Amplifier

The RANE HA6S is a universal, multi-purpose mixer and headphone amplifier for rehearsal, studio or stage. Perfect for headphones, in-ear monitors, or personal monitor mixing, HA6S features six independent high-power stereo amplifiers in one compact rack unit that delivers maximum audio quality, even at very high or very low volume levels; HA6S has a minimized circuitry path which means there’s less ‘stuff’ for your signal to pass through, keeping your sound clear and crisp.

HA6S 6-Channel Headphone Amplifier

HA6S 6-Channel Headphone Amplifier

  • Professional amplification system for studio and stage applications
  • (6) individual headphone channels
  • Input gain control and individual output gain control
  • Stereo AUX input on each channel with level control
  • Supplies (6) fully independent mixes for up to (18) pairs of headphones
  • Mono and Left/Right mutes per channel for (2) mono mixes per channel
  • Balance control to mix Main and Aux input signals
  • Four-segment LED on each channel for easy visual monitoring

HA6S 6-Channel Headphone Amplifier

HA6S 6-Channel Headphone Amplifier

  • Main Input
    • Connectors: XLRF and 1/4" jacks
    • Type: RF-filtered, servo balanced inputs
    • Impedance: 50kΩ balanced, 25kΩ unbalanced
    • Max. input level: +21dBu balanced and unbalanced (unity gain)
    • CMRR: typically 40dB, >55dB @1kHz
  • AUX IN and DIRECT IN Input
    • Connectors: 1/4" TRS (tip=left, ring=right, sleeve=ground)
    • Type: unbalanced
    • Impedance: 25 kΩ unbalanced
    • Max. input level: +21dBu unbalanced (unity gain)
    • CMRR: typically 40dB, >55dB @1kHz
  • Audio Output
    • Connectors: XLRM and 1/4" jacks
    • Type: Balanced / unbalanced
    • Impedance: Dependent on the input impedance
    • Max. output level: +21 dBu balanced and unbalanced
  • System Specifications
    • Frequency response: 10–50,000 Hz, ±3dB
    • Noise: >90dB unweighted (22 - 22kHz > 95dB @ +4dBu)
    • Total Harmonic Distortion (THD): 0.005% typically @+4dBu, 1kHz, Gain 1
  • Power Amplifier
    • Max. output power: +21dBm
    • Min. output impedance: 100Ω
    • Max. gain: +20dB
  • Function Controls
    • Input level: Variable
    • Balanced per channel: Mix between AUX and MAIN signal
    • Output level per channel: Variable
  • Function Switches
    • Left mute: Mutes the left signal of the respective channel
    • Right mute: Mutes the right signal of the respective channel
    • Mode: Switches channel to MONO
  • Indicators
    • Input level: 8-digit LED display; -24/-18/-12/-6/0/+6/+12/+18 dBu
    • Output level: 4-digit LED display; -24/0/+12 dBu/Clip
  • General
    • Power supply USA/Canada: 120VAC, 60Hz
    • Power supply U.K./Australia: 240VAC, 50Hz
    • Power supply Europe: 230VAC, 50Hz
    • Power consumption: 40W
    • Fuse: 95-120VAC: T500mA L / 210-240VAC: T315mA L
    • Mains connection: Standard IEC receptacle
    • Dimensions: (WxDxH) 19" x 8.54" x 1.7" (483 x 217 x 44mm)
    • Weight: 6.39lbs (2.9kg)

HA6S Literature

Each unit is shipped with the Manual containing the schematic, the RaneNote "Sound System Interconnection," Declaration of Conformity, and Rane's 2+ Year Warranty information.
