CP66S Commercial Processor

CP66 Commercial Processor

  • Six independent and linkable Zones.
  • Six Program Inputs (4 RCA, 2 balanced euroblock).
  • One gated Priority Input.
  • Paging Inputs with Priority assign.
  • Independent EQ, Limiter, Ducker depth, Filter Cutoff, Priority Enable and Page Level per Zone.
  • Music-on-Hold Output (Transformer isolated).
  • Front Panel lockout switch.

Accessories

  • Optional PAGER2 Smart Paging Station with Mic input.
  • Optional DR1 Remote Zone/Group Level control.
  • Optional DR3 Remote Zone/Group Input Select or Master Level.

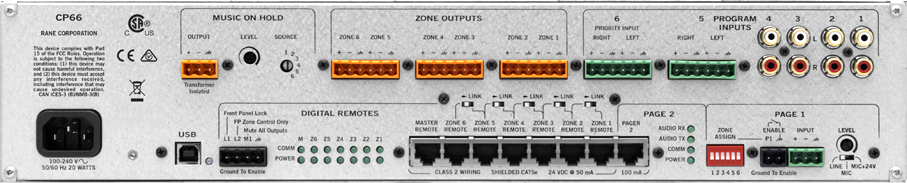

CP66 Commercial Processor

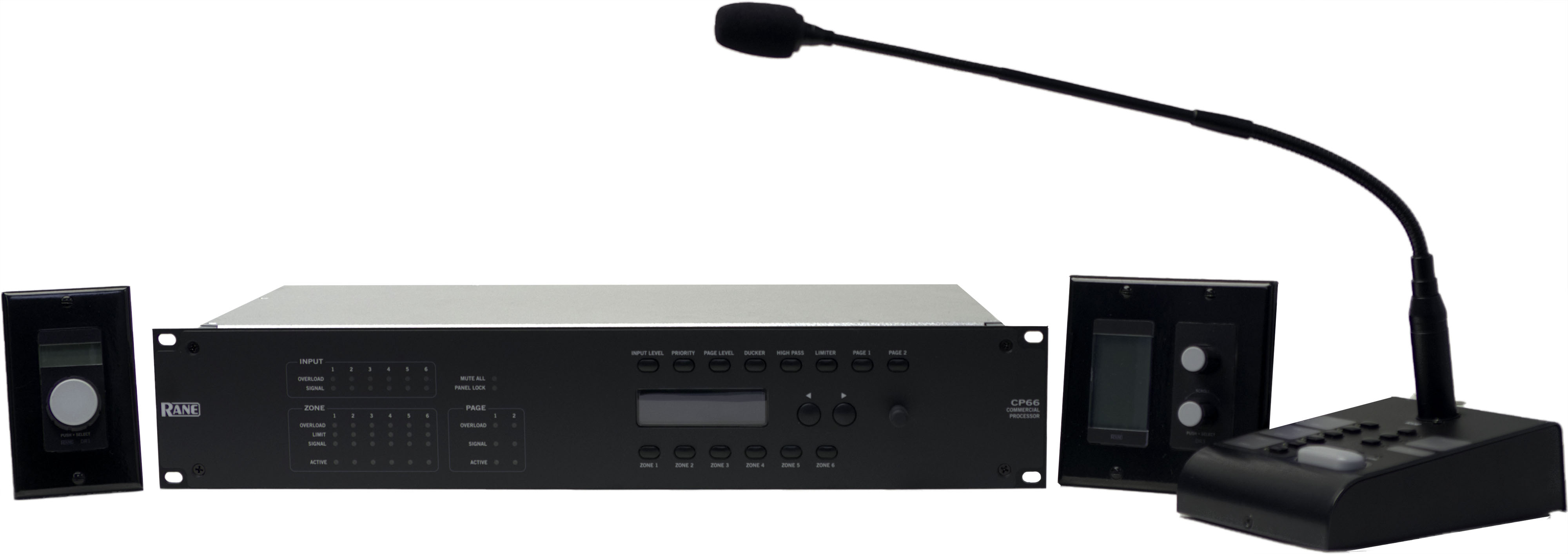

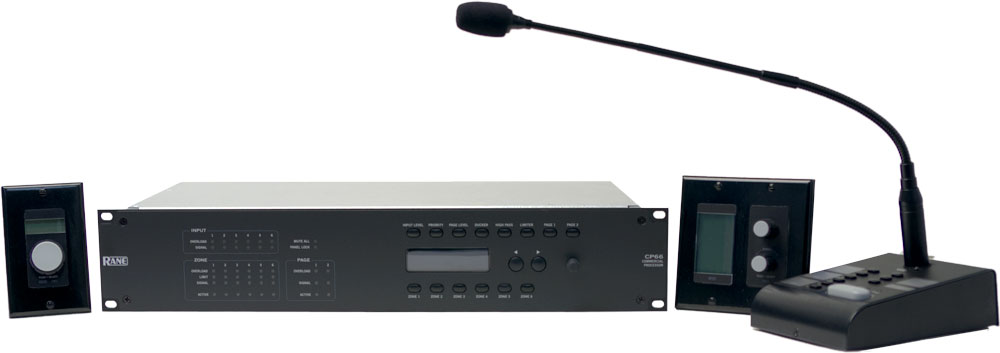

CP66 & Accessories

The Rane CP66 is a multiple-input Commercial Zone Processor with paging support. Designed for versatility, it is perfect for use in restaurants, bars, offices, retail stores, stadiums, and other types of multi-zone environments.

With six Program inputs, six linkable Zone outputs, Page input, and support for the Rane PAGER2, DR1, and DR3 Digital Remotes, a multitude of system configurations are possible.

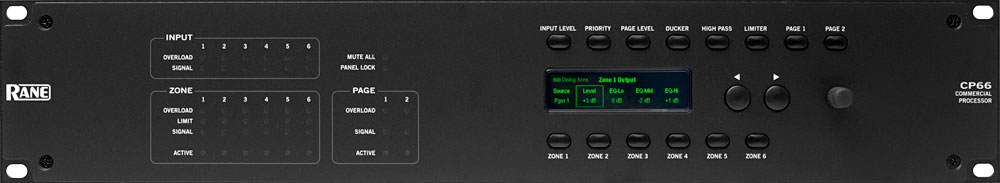

The CP66 can be configured entirely using its intuitive front panel controls, and easily set up by a technician in any location without a computer. Included Windows® software (connected through USB) provides the additional ability to save and load preconfigured settings for easy deployment, and also allows custom Zone and Group naming.

Any of the six Program inputs can be assigned to each Zone. Program Input 6 can act optionally as a gated Priority Input for use with a jukebox or notification system.

Each Zone features independent settings for:
Level 3-Band EQ Source Select Page Level
Ducker Depth High-Pass Filter Limiter Threshold Priority input Enable

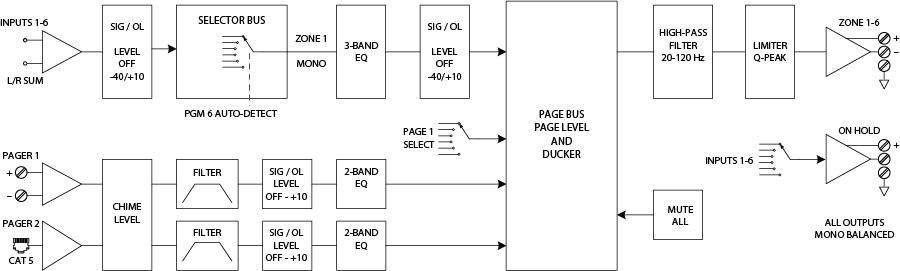

CP 66 Processing

Page inputs are priority controlled, so a high priority input will always override the other. If Page priorities are equal, then both can be used simultaneously.

Page 1 supports an analog line or mic level input with selectable 24 V phantom power, and is assigned to Zones via a rear panel dipswitch.

Page 2 supports the optional Rane PAGER2 paging station, allowing dynamic Zone selection right at the microphone, and can store preset groups for even easier page selection. The PAGER2 connects via a single standard CAT 5 cable. See details via the link at the left. (Mic not included with PAGER2.)

Zones may be linked into groups via rear panel switches. When linked, the Level and Source as well as any connected Remote controls are set to the same value for each Zone in the group. This allows simple but powerful linking scenarios without the need for complicated software.

The Rane Digital Remote DR1 adds remote control of Zone (or linked group) Output Level, optionally limited by configurable max and min values. The DR3 adds Input Source selection along with Level, and can be a Master Level control displaying and controlling all six Zone levels from a single location. Custom Digital Remote display names can be set in the PC software. See details via the links at the left.

Independent Accelerated-Slope™ 3-band tone controls for each zone allow easy intuitive adjustment. The tone controls use 12 dB per octave Linkwitz-Riley filters with a range of ±6 dB.

A dedicated transformer-isolated output delivers any Program input source to music-on-hold in a telephone system.

System security can be enabled from a local or remote switch. Options include full CP66 front panel lockout, allowing only front panel zone control, and remote muting.

The Rane CP66 includes an internal 100-240 VAC power supply and is CSA approved.

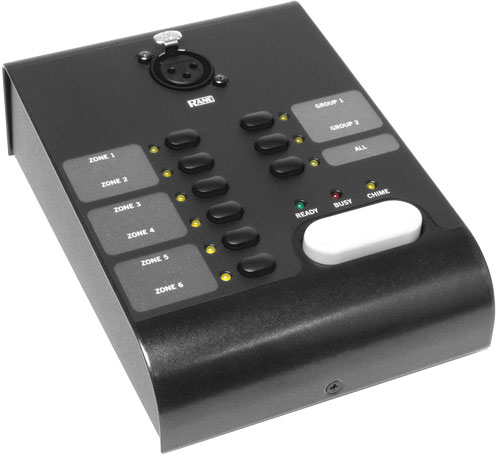

PAGER2 Paging Remote

PAGER2 Paging Station

The PAGER2 is a Smart Paging Station that allows advanced features beyond a normal analog microphone. Specific to the CP66, this unit lets you decide which combination of the six Zones to Page into and displays important information such as whether or not a higher priority page is already occurring.

The PAGER2 accepts any standard gooseneck mic and has built-in selectable 24 V Phantom Power and a 13 dB pad. It normally sits on a desk or table, and has lockdown features for security. It connects to and is powered by the CP66 via shielded CAT 5 cable up to 500 feet (152 meters). Status indicators on the rear of PAGER2 and the CP66 verify communication.

PAGER2 rear panel

The PAGER2 chassis is painted steel, measuring 4.5" x 6" x 2" (11.4 x 15.2 x 5.1 cm). Unit weight is 20 ounces (567 grams).

A gooseneck mic is not included.

Labels for custom Zone and Group names may be inserted in slots on the sides of the protective Lexan faceplate. The PDF from the link below allows you to print your own custom PAGER2 labels. Just fill in the fields, click "Print Form," cut to fit, and insert the labels. Acrobat or Adobe Reader 7 and higher is required.

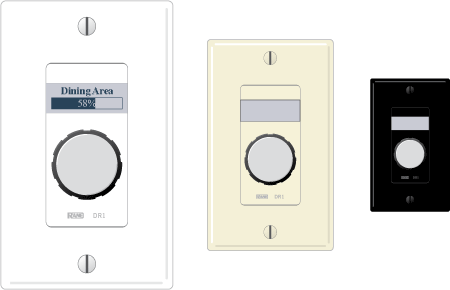

DR1 Volume Remote

DR1 Digital Remotes

The Rane DR1 is a Level Control remote with several features that make it stand out against any other wired remote. The LCD display shows the name of the Zone or Group that it is connected to, customizable in the CP66 Software to anything you like. The Level value is also shown, and updated dynamically when it is changed elsewhere, such as in a linked group with multiple Remotes connected. The display has a backlight for readability that turns on when used, then dims after a short time period.

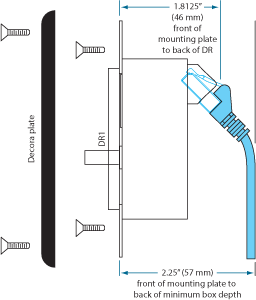

DR1 Side

The DR1 may be installed in a standard electrical box with a minimum depth of 2.25" (5.7 cm). Available in white, ivory and black, the DR1 includes a matching Decora® plate cover..

Digital Remotes connect to the CP66 via a single-run CAT 5e cable (or better) up to 1000 feet (304 meters).

DR3 Selection and Volume Remote

DR3 Digital Remotes

Inside a Zone: Single Level & Source Selector

DR3 Digital Remotes

Master Remote: List of Zones with Levels

The Rane DR3 provides Level control when connected to a Zone Remote port on the CP66, with the added control of Input Source selection. This lets you select the audio source for a room from within the room itself, or anywhere else you need remote control.

The DR3 can also be used as a Master Remote on the CP66, displaying the Volume Level for all Zones and Groups and allowing you to change each of them dynamically from a single location, such as behind a bar or at a reception area. Plugging the DR3 into the Master Remote jack on the CP66 will make it the Master.

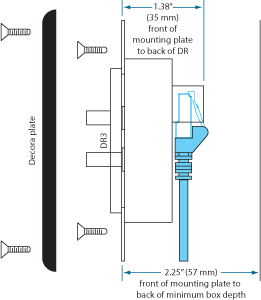

DR3 Side

The DR3 may be installed in a standard 2-gang electrical box with a minimum depth of 2.25" (5.7 cm). Available in white, ivory and black, the DR3 includes a matching Decora® plate cover.

Digital Remotes connect to the CP66 via a single-run CAT 5e cable (or better) up to 1000 feet (304 meters).

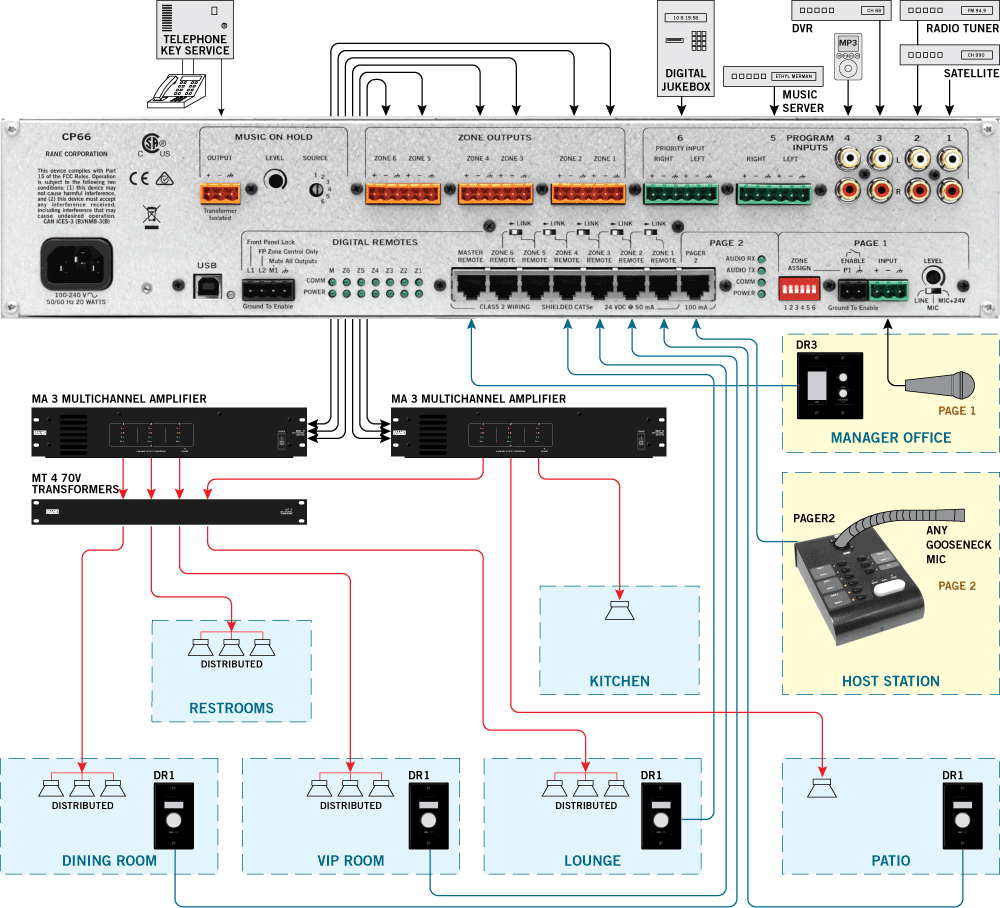

Application: 6-Zone Restaurant

CP66 Restaurant and Bar

This example allows host paging in the dining room, lounge, meeting room, patio, restrooms and kitchen. Groups of zones may be accessed by single buttons on the PAGER2. For instance, a group can be named "table ready" and include the lounge, patio and restrooms. Another group only pages the eating areas. A third group can page everyone.

The manager can page any room using a DR3 remote and a microphone without leaving his office (or put one in the kitchen).

Background music volume is controlled by a DR1 remote in the dining, meeting, lounge and patio, giving local control by the staff to accommodate the quiet or busy times in each room.

Background music is also fed to music-on-hold in the telephone system.

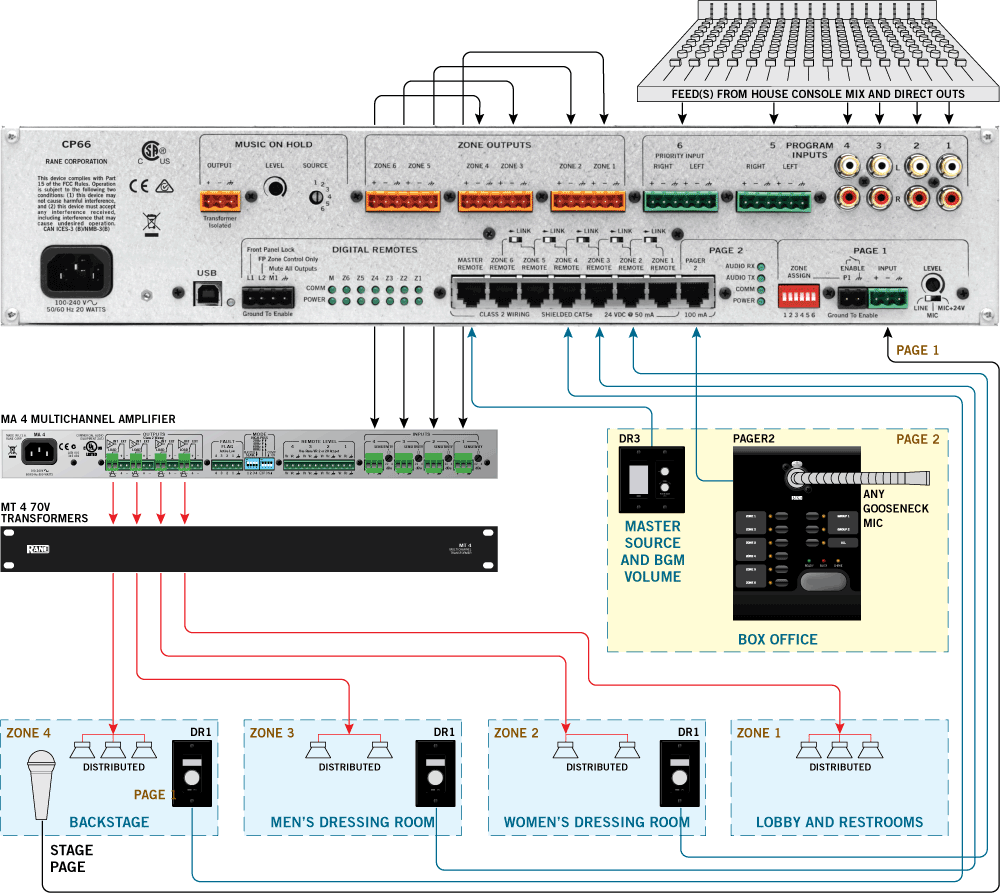

Application: Off-Broadway Theater

CP66 Theater

This theater uses the CD player, computer, or radio in the sound booth as shared background music sources. The house mix is also a program source during showtime.

The PAGER2 at the box office is able to page the lobby and restrooms, backstage, and the women's or men's dressing room. Groups of zones may be accessed by single buttons on the PAGER2. For instance, a group can be named "manager call" and include the dressing rooms and backstage. Another group only pages the public areas. Another group can page everyone.

A DR3 master source remote can be locate in the box office or concession area to control background music or the house mix in the lobby.

A paging mic can be present backstage so someone can page the other areas during rehearsal.

Background music or stage volume is controlled by a DR1 remote backstage and in each dressing room.

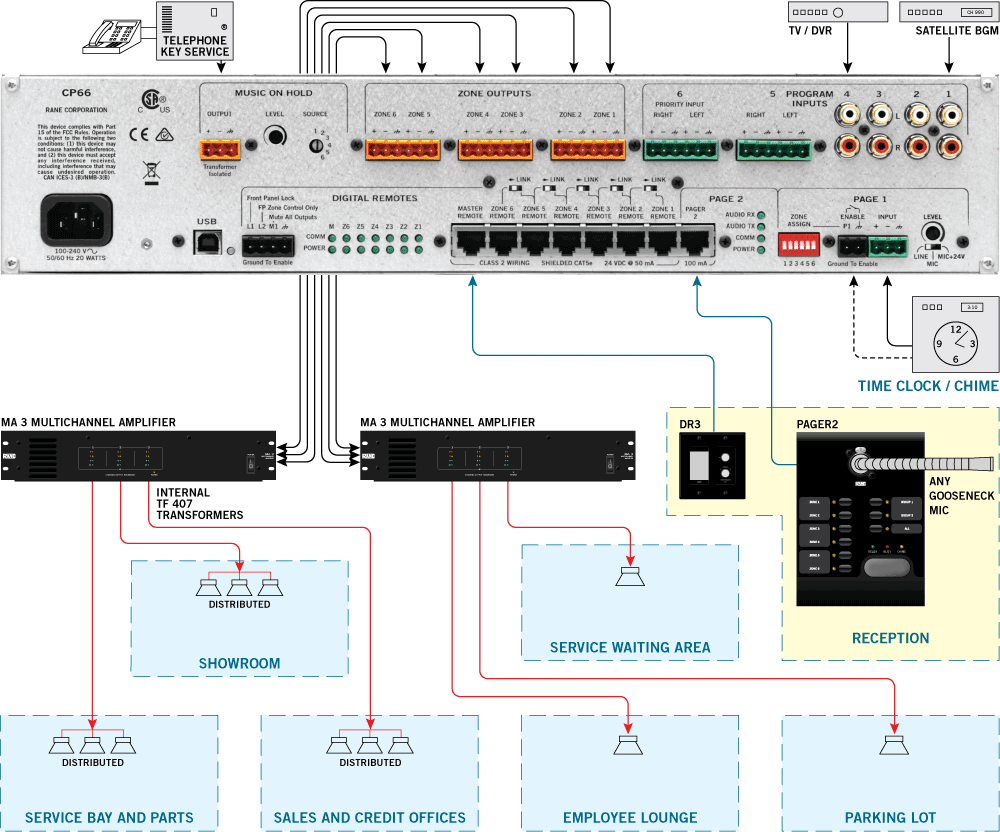

Application: Auto Dealer

CP66 Auto Dealer

This car dealer has a time clock with a chime output connected to the PAGE 1 INPUT. The clock has a contact closure that enables the chime. Volume and ducking of background music are controlled in the zone output settings.

The PAGER2 at the reception desk is able to page the showroom, service waiting area, service bay and parts department, sales and credit offices, the employee lounge, and the parking lot. Groups of zones may be accessed by single buttons on the PAGER2. For instance, a group can be named "service to front" and include the service bay, sales offices, employee lounge and parking lot. Another group only pages customers in the showroom and service waiting areas. Another group can page everyone.

A DR3 master source remote can be located in the reception desk or manager's office to control background music in the customer areas.

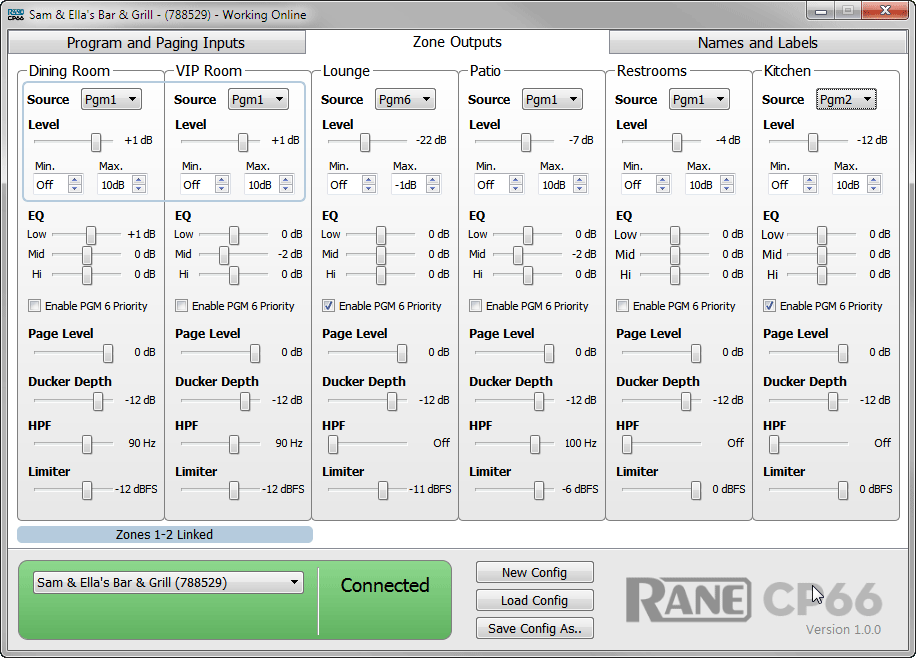

CP66 Software

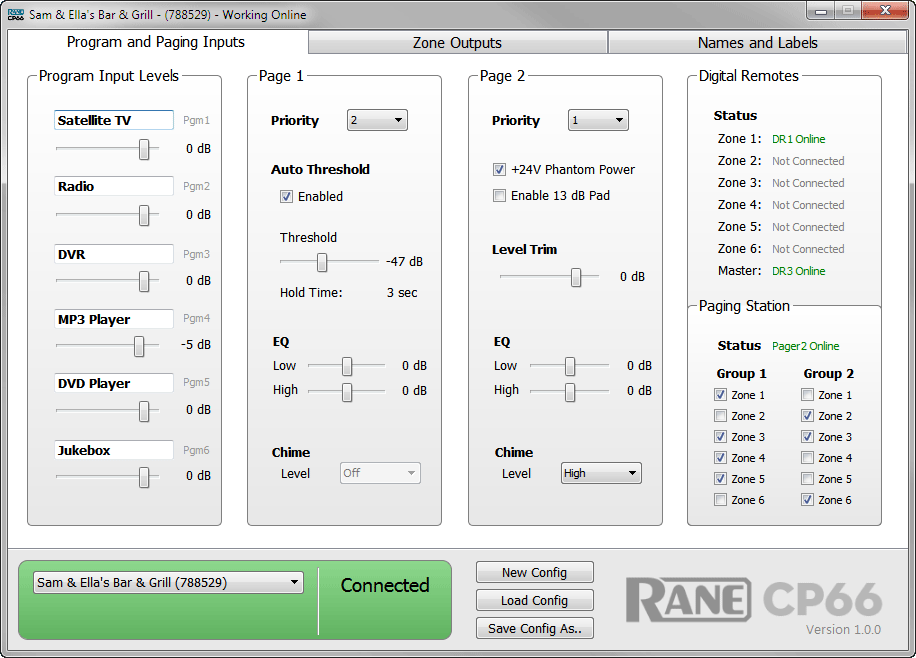

CP66 Software

The CP66 Software Application permits easy setup of the CP66 using a Windows PC attached to the rear panel USB port. Configurations can be saved and recalled on a laptop, speeding installation at multiple sites. The names and labels feature allows custom names of sources and zones to appear in attached DR1 and DR3 Remote Controls, as well as the CP66 front panel display.

CP66 software

The software is included on CD-ROM in the box with the CP66. The software is supported on Windows® XP, Vista, 7 and 8, and requires a USB connection.

1.2.0 Release Notes

  • Fixed the occasional dropped comm link to DR1, DR3 or PAGER2.
  • Fixed ability to roll back firmware in connected DR1, DR3 or PAGER2.
  • DR1, DR3 and PAGER2 firmware are updated to current production.

1.1.1 provides a compatibility fix for 1.1.0.

1.1.0 Release Notes

  • Different Max / Min settings for Linked Zones now allowed
  • PAGER2 Hold-to-Store disable function added
  • Support for automatic firmware update (hw ver. 2 or later)

CP66 Support

If the above doesn't answer your question:
Phone the Rane Factory at 425-355-6000, 8:30 AM to 5 PM PST, Monday to Friday.
Email is answered most weekdays from the Rane Factory Contacts.

Commercial Processors Comparison


CP66
Levels of Priority
3
4
3
5
1
Paging Mic Inputs
1
2
2
6
1
Program Line Inputs
4
4
6
6
1
Number of Zones
1 Stereo
1 Stereo + 1 Mono
6
10
2
Page Limiter
Yes
No
Yes
Yes
Yes
Page High / Low Filter
Yes
No
Yes
Yes
Yes
Expand Outputs
1
2
1
-
-
Expand Levels
Yes
No
Yes
Yes
Yes
Open Architecture DSP
No
No
No
Yes
Yes

If you don't need front panel controls, see the HAL System, providing drag-and-drop processing with easy user control of background music and paging.

Model
Analog Inputs
Analog Outputs
RAD inputs
RAD outputs
Total Inputs
Total Outputs
HAL1x
8
8
8
8
16*
16*
HAL2
8
8
8+2
8+2
18
18
HAL3s
2
6
4
4
6
10
HAL4
2
2
0
0
2
2

*A HAL1x can connect up to 32 Expanders for a total of 528 inputs and 528 outputs.
